Brand Name : HUAWEI
Model Number : S5735-S24PN4XE-V2
Place of Origin : China
MOQ : 1/set
Payment Terms : T/T
Supply Ability : 50pcs per week
Delivery Time : 2-3 work days
Product Model : CloudEngine S5735-S24PN4XE-V2
Forwarding Performance : 144 Mpps
Switching Capacity : 248 Gbps/520 Gbps
PoE : Supported, PoE+
Power Module : N+1 backup
Chassis height : 1U
Chassis weight(including packaging) : 11.98kg
Power supply type : 600 W AC PoE 1000 W AC PoE 1000 W DC PoE
CloudEngine S5735-S-V2 series 2.5GE s witches are ideal for diverse scenarios such as the access and aggregation layers of enterprise campuses, and the access layer of data centers. Built on the next-generation high-performance hardware and Huawei's unified software platform, CloudEngine S5735-S-V2 series switches support enhanced Layer 3 features, easy O&M, flexible Ethernet networking, and mature IPv6 features.
| Product Model | CloudEngine S5735-S24PN4XE-V2 |
| Forwarding Performance | 144 Mpps |
| Switching Capacity | 248 Gbps/520 Gbps |
| Fixed Ports | 24 x 10/100/1000/2.5GE Base-T ports, 4 x 10 GE SFP+ ports, 2 x 12GE stack ports |
| PoE | Supported, PoE+ |
| Power Module | N+1 backup |
| VLAN | 4094 VLANs Voice VLAN MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports |
| IP Routing | Static routes, RIP, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, VRRP6, ECMP, routing policies, and policy-based routing |
| Chassis height | 1U |
| Chassis weight(including packaging) | 11.98kg
|

|
|

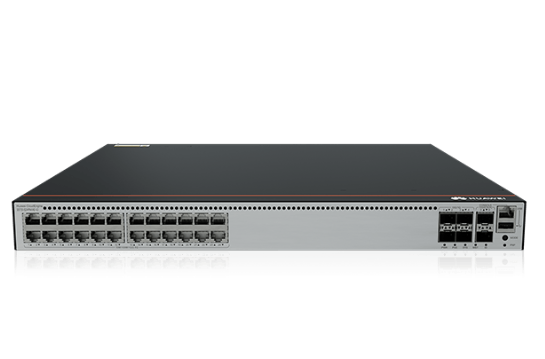

HUAWEI CloudEngine S5735-S24PN4XE-V2 Switch with 144 Mpps Forwarding Performance 248 Gbps/520 Gbps Switching Capacity and N+1 Power Module Backup Images |
