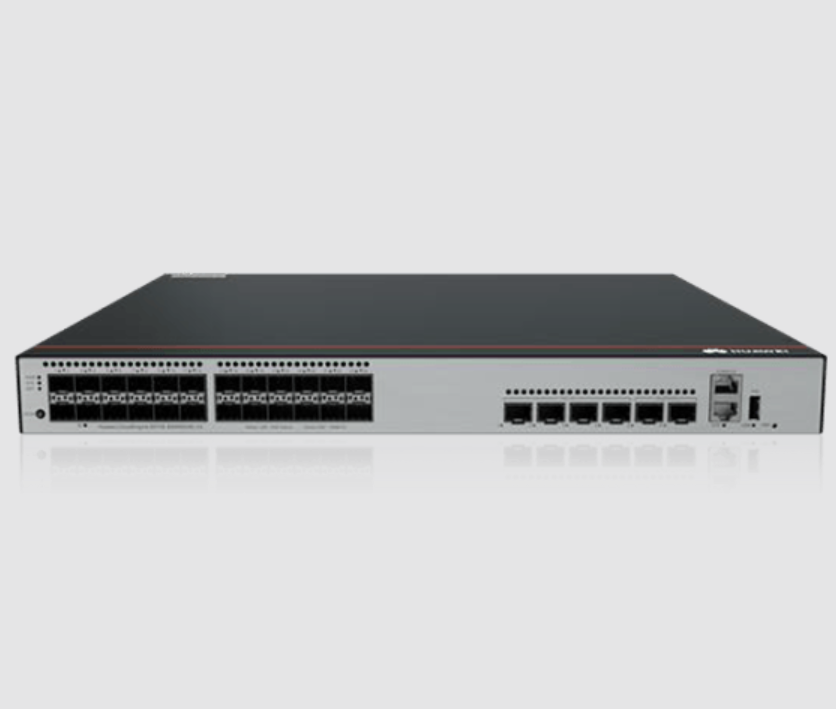

HUAWEI CloudEngine S5735-S24HS4XE-V2 Hybrid Optical-Electrical Switch with 132 Mpps Forwarding Performance 176 Gbps/520 Gbps Switching Capacity and 7

  • 1
  • 2

Brand Name : HUAWEI

Model Number : S5735-S24HS4XE-V2

Place of Origin : China

MOQ : 1/set

Payment Terms : T/T

Supply Ability : 50pcs per week

Delivery Time : 2-3 work days

Product Model : CloudEngine S5735-S24HS4XE-V2

Forwarding Performance : 132 Mpps

Switching Capacity : 176 Gbps/520 Gbps

PoE : Supported, 90 W PoE++

Memory（RAW） : 2GB

Chassis height : 1U

Chassis weight（including packaging） : 7.35KG

Power supply type : 1+1 power supply backup

Contact Now

Based on the next-generation high-performance hardware and Huawei's Versatile Routing Platform (VRP), the CloudEngine S5735-S-V2 series hybrid optical-electrical switches support enhanced Layer 3 features, easy O&M, flexible Ethernet networking, and mature IPv6 features. They can be widely used in enterprise campus access and aggregation, data center access, and many other scenarios.


Product Model

CloudEngine S5735-S24HS4XE-V2

Forwarding Performance

132 Mpps

Switching Capacity

176 Gbps/520 Gbps

Fixed Ports

24 x GE SFP ports, 1 x DB50 port, 4 x 10 GE SFP+ ports, 2 x 12GE stack ports

PoE

Supported, 90 W PoE++

Power supply type

1+1 power supply backup

MAC Features

MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting

VLAN

4094 VLANs

Voice VLAN

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

IP Routing

Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6

Dimensions (H x W x D,mm)

43.6mm*442mm*420mm

Chassis height

1U

Chassis weight(including packaging)

7.35KG

Memory(RAW)

2GB
